Trinocular Compound Microscope — 40–2000× with Integrated USB Camera, Abbe Condenser

A trinocular compound microscope bridges the gap between professional research and serious amateur science — the third eyepiece port lets you capture and share exactly what you see.

The integrated USB camera connects directly to any laptop, streaming live microscopy footage or capturing stills for analysis and documentation. The Abbe condenser (N.A. 1.25) and iris diaphragm give precise control over contrast and depth of field across all magnifications. At 2000× (with 2× Barlow), you can resolve structures as small as 0.2 microns — well into the territory of bacteria, pollen, and protozoa.

• 40×, 100×, 400×, 1000× objectives (4 DIN achromatic); 2× Barlow included for 2000×
• Trinocular head — dual eyepieces + camera port with 5MP USB camera
• Abbe condenser N.A. 1.25 with iris diaphragm; coaxial coarse & fine focus
• Mechanical stage with XY slide holder; LED transmitted illumination

Every purchase directly funds independent physics research at the Golden Physics Project.

Expert Analysis

The trinocular body is the feature that separates this from a standard binocular compound microscope — the third port enables simultaneous visual observation and camera capture without sacrificing one for the other. The integrated 5MP USB camera outputs directly to any laptop, making it practical to record video, stream live for teaching, or document specimens for a research record. At 40–2000× using the wide-field eyepieces and 2× Barlow, this covers everything from large-scale cell architecture at low power to bacterial resolution at maximum magnification.

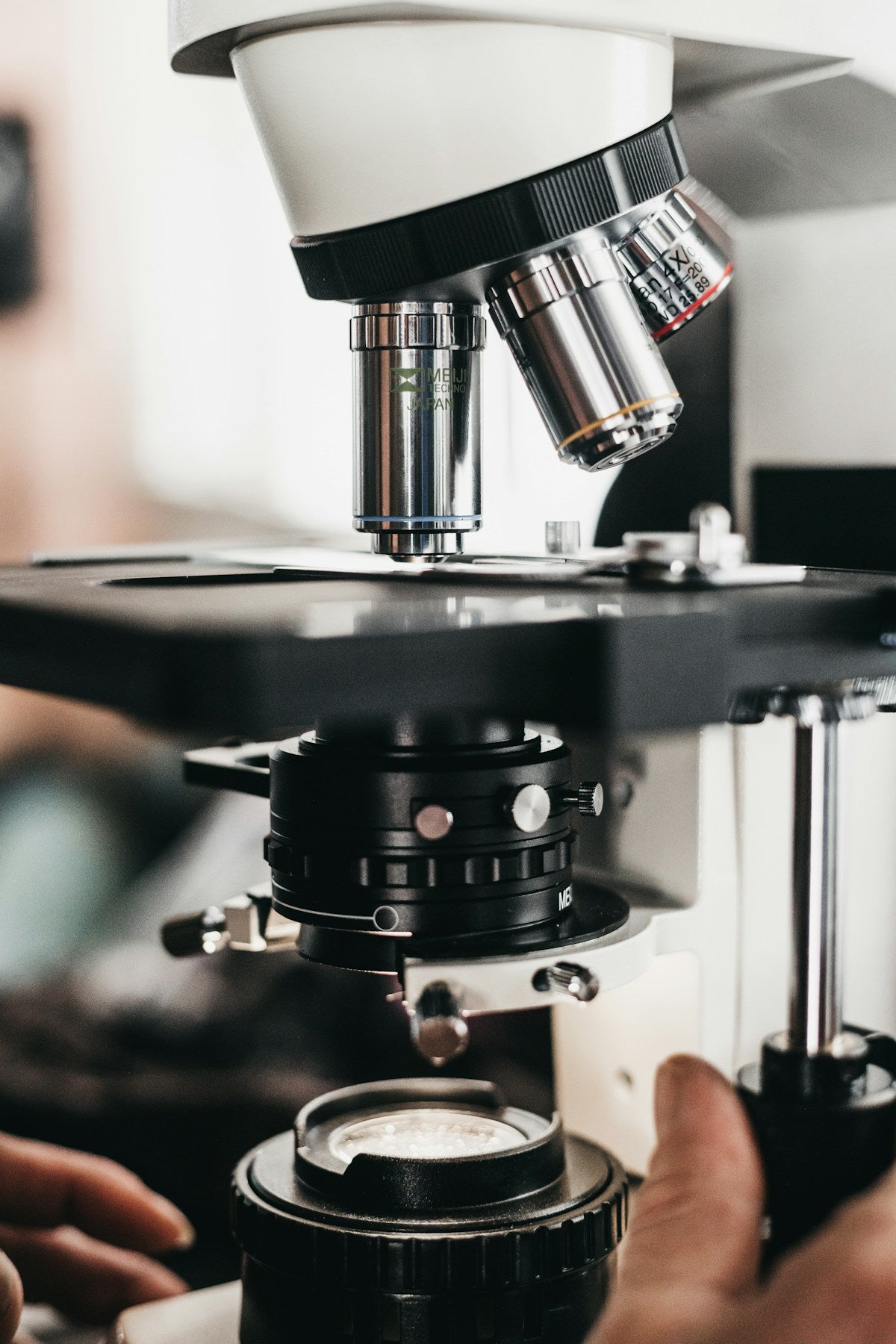

The Abbe condenser with iris diaphragm is the critical optical component distinguishing a laboratory-grade instrument from consumer-grade alternatives. It provides correct illumination across the full magnification range, eliminating the uneven brightness that limits contrast on lower-quality microscopes. The coaxial X-Y mechanical stage allows systematic slide scanning in measured steps — you can return to a specific specimen location, which is essential for scientific documentation and cell counting. These are the features that define research-capable microscopy.

For home laboratories, university students, and amateur biologists, this is as close to a professional research instrument as you will find outside institutional supply channels at this price. Image quality through the eyepieces at 400× is comparable to what you would encounter in an undergraduate cell biology laboratory. The USB camera integration makes this genuinely useful for science education — capture what you observe, annotate images, and build a documented experimental record that stands up to scrutiny.
